EN 10204 3.1 material certificate
Can be included when agreed in the order.
1/3Available with the order
Order assurance
The supplier has confirmed that the options below can be agreed for this product. The exact scope is fixed in the quotation or order.Dimensional inspection report
Can be provided for the agreed inspection scope.
Bulk carton packing
Available subject to confirmed piece weight and shipping requirements.
Palletized shipment
Available when pallet size and handling requirements are confirmed.
Small boxes with outer cartons
Available when the box quantity and labels are agreed.
Buyer branding and labels
Available after artwork, label content, placement and the applicable minimum batch are agreed.
Available options
Material
Grade
Finish
14 sizes

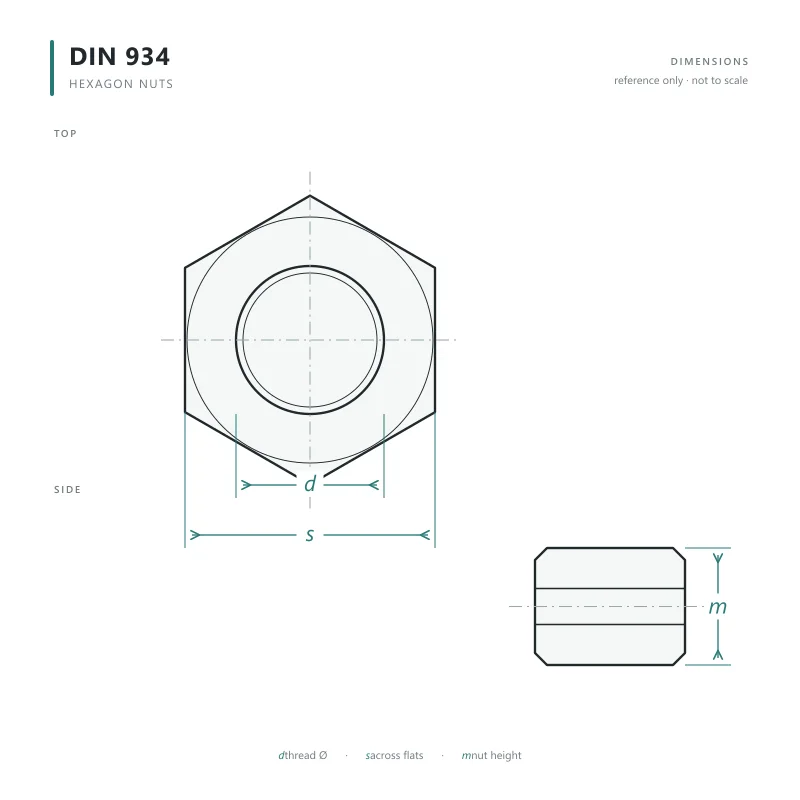

| d | P | s | e | m | MOQ | Quantity and inquiry |
|---|---|---|---|---|---|---|
| M6 | 1 | 10 | 11.05 | 5 | 10000 | |
| M8 | 1.25 | 13 | 14.38 | 6.5 | 5000 | |
| M10 | 1.5 | 17 | 18.9 | 8 | 5000 | |
| M12 | 1.75 | 19 | 21.1 | 10 | 5000 | |
| M14 | 2 | 22 | 24.49 | 11 | 5000 | |
| M16 | 2 | 24 | 26.75 | 13 | 5000 | |
| M18 | 2.5 | 27 | 30.14 | 15 | 5000 | |
| M20 | 2.5 | 30 | 33.53 | 16 | 1000 | |
| M22 | 2.5 | 32 | 35.72 | 18 | 500 | |
| M24 | 3 | 36 | 39.98 | 19 | 500 | |
| M27 | 3 | 41 | 45.2 | 22 | 500 | |
| M30 | 3.5 | 46 | 50.85 | 24 | 500 | |
| M33 | 3.5 | 50 | 55.37 | 26 | 500 | |
| M36 | 4 | 55 | 60.79 | 29 | 500 |
DIN 934 | M6
dM6
P1
s10
e11.05
m5
MOQ10000
DIN 934 | M8
dM8
P1.25
s13
e14.38
m6.5
MOQ5000
DIN 934 | M10
dM10
P1.5
s17
e18.9
m8
MOQ5000
DIN 934 | M12
dM12
P1.75
s19
e21.1
m10
MOQ5000
DIN 934 | M14
dM14
P2
s22
e24.49
m11
MOQ5000
DIN 934 | M16
dM16
P2
s24
e26.75
m13
MOQ5000
DIN 934 | M18
dM18
P2.5
s27
e30.14
m15
MOQ5000
DIN 934 | M20
dM20
P2.5
s30
e33.53
m16
MOQ1000
DIN 934 | M22
dM22
P2.5
s32
e35.72
m18
MOQ500
DIN 934 | M24
dM24
P3
s36
e39.98
m19
MOQ500
DIN 934 | M27
dM27
P3
s41
e45.2
m22
MOQ500
DIN 934 | M30
dM30
P3.5
s46
e50.85
m24
MOQ500
DIN 934 | M33
dM33
P3.5
s50
e55.37
m26
MOQ500
DIN 934 | M36
dM36
P4
s55
e60.79
m29
MOQ500

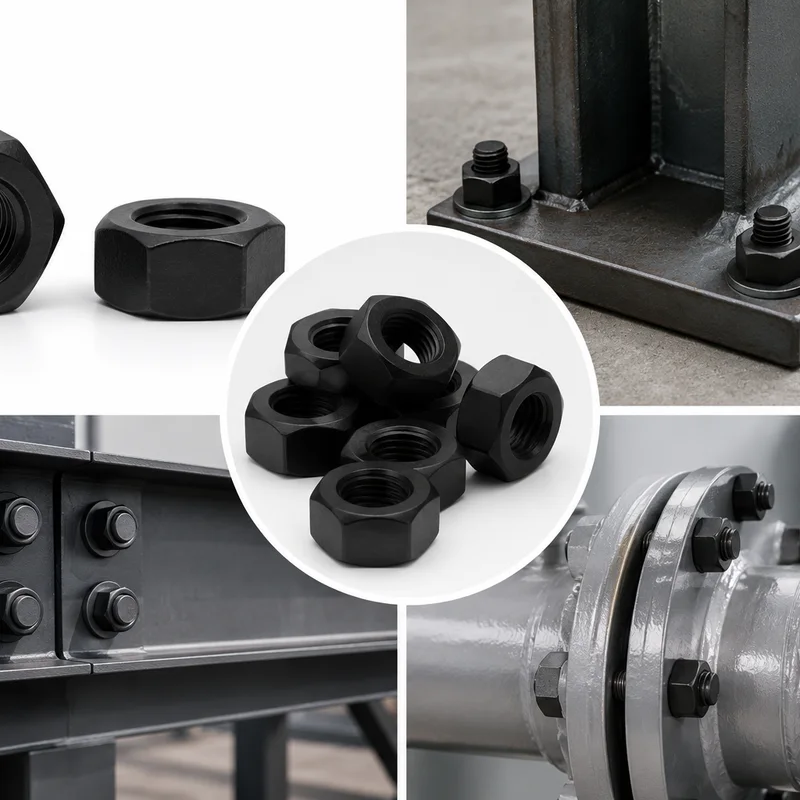

Product description
Hexagon nut manufactured to DIN 934 in carbon steel, offered in property classes 8 and 10 with zinc plated or blackened finish. Standard metric sizes from M6 to M36 are available, with dimensions per DIN 934. For quotation, specify diameter, pitch, property class, finish, and required quantity. Minimum order quantities vary by size.
Key features
- Property classes 8 and 10
- Zinc plated or blackened finish
- Metric sizes M6 to M36
Applications
- Machinery assembly
- Equipment fastening
- Industrial maintenance
Standard and order documents
The selected execution standard is the product basis. Published or order-specific documents are shown only when they have been confirmed for this product.
Frequently Asked Questions
What documented quality support is available for DIN 985 Nylon Insert Lock Nut | Hexagon Nylon Lock Nut?
Documents: EN 10204 3.1 material certificate, Dimensional inspection report. Confirm the required scope and acceptance criteria in the quotation.
Which order and delivery details are already confirmed for DIN 985 Nylon Insert Lock Nut | Hexagon Nylon Lock Nut?
MOQ: 500–10000 pcs. Confirmed packing options include Bulk carton packing, Palletized shipment, Small boxes with outer cartons, Buyer branding and labels.
What information should be included in a quotation request for DIN 985 Nylon Insert Lock Nut | Hexagon Nylon Lock Nut?
Provide the required standard, diameter or size, material, property class or grade, finish, quantity, delivery destination.
