DIN 931 | M12 x 140
dM12
L140
b36
P1.75
s19ISO 4014: 18
e21.1ISO 4014: 20.03
MOQ280
1/3Bolts

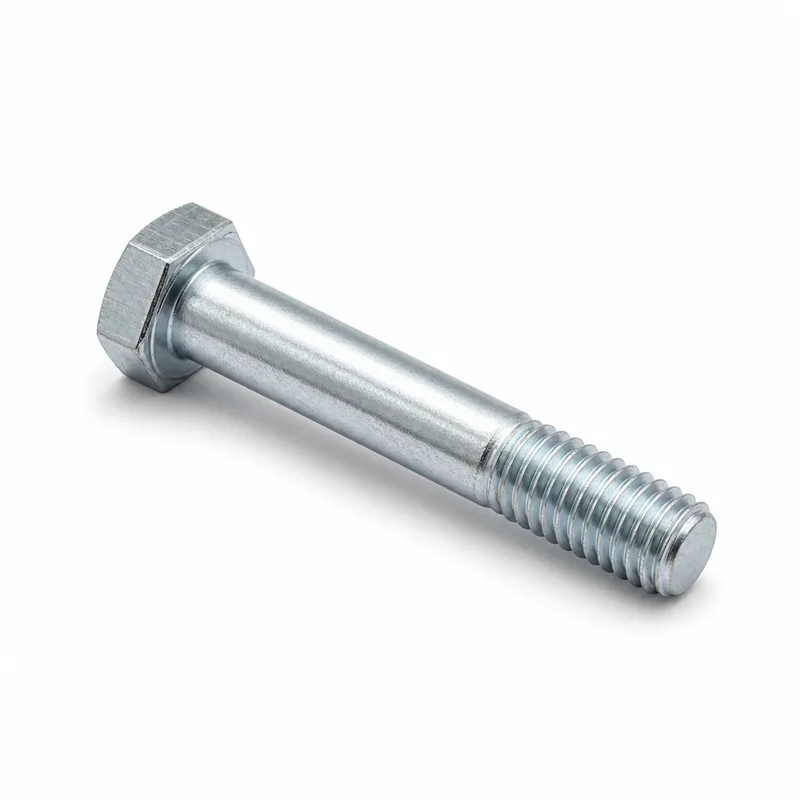

Partially Threaded Hexagon Head Bolt DIN 931
DIN 931 · M8–M36 · Carbon Steel
DIN 931 (Historical)Corresponding standard: ISO 4014Differences are marked in the specification table.
● Available for quotation
- Head Form
- Hexagon Head
- Material
- Carbon Steel
- Thread Type
- Part Thread
MOQ: 12–600 pcs · Lead time: 10-15days
Share
Available options
Material
Grade
Finish
139 sizes

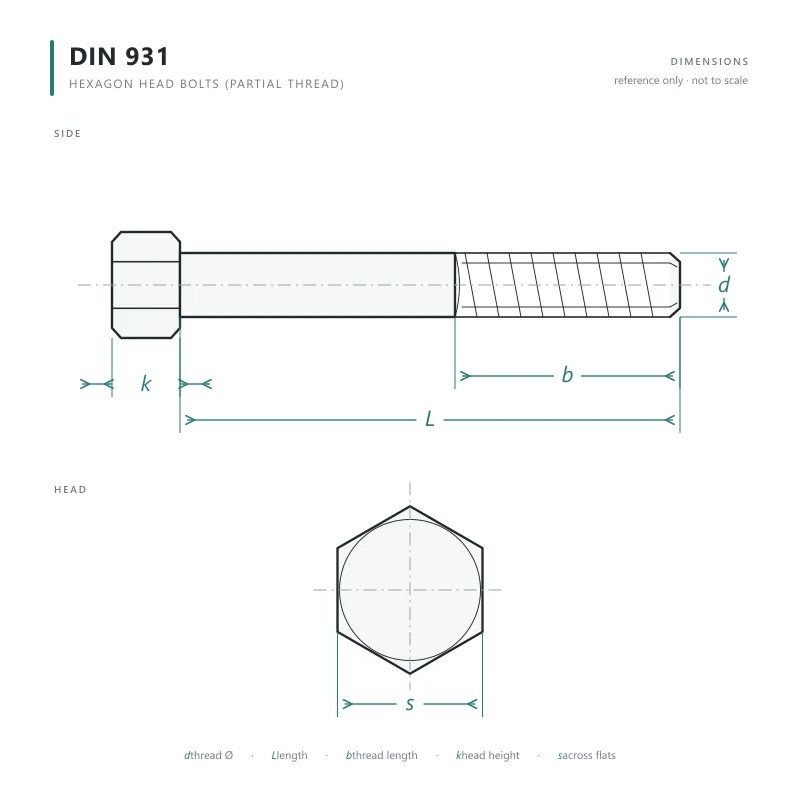

| d | L | b | P | s | e | MOQ | Quantity and inquiry |
|---|---|---|---|---|---|---|---|
| M12 | 140 | 36 | 1.75 | 19ISO 4014: 18 | 21.1ISO 4014: 20.03 | 280 | |
| M12 | 150 | 36 | 1.75 | 19ISO 4014: 18 | 21.1ISO 4014: 20.03 | 260 | |
| M12 | 160 | 36 | 1.75 | 19ISO 4014: 18 | 21.1ISO 4014: 20.03 | 240 | |
| M12 | 190 | 36 | 1.75 | 19ISO 4014: 18 | 21.1ISO 4014: 20.03 | 240 | |
| M12 | 200 | 36 | 1.75 | 19ISO 4014: 18 | 21.1ISO 4014: 20.03 | 200 | |
| M12 | 240 | 49 | 1.75 | 19ISO 4014: 18 | 21.1ISO 4014: 20.03 | 160 | |
| M12 | 300 | 49 | 1.75 | 19ISO 4014: 18 | 21.1ISO 4014: 20.03 | 140 | |
| M14 | 120 | 34 | 2 | 22ISO 4014: 21 | 24.49ISO 4014: 23.36 | 220 | |
| M14 | 130 | 40 | 2 | 22ISO 4014: 21 | 24.49ISO 4014: 23.36 | 220 | |
| M14 | 140 | 40 | 2 | 22ISO 4014: 21 | 24.49ISO 4014: 23.36 | 200 | |
| M14 | 150 | 40 | 2 | 22ISO 4014: 21 | 24.49ISO 4014: 23.36 | 200 | |
| M14 | 200 | 40 | 2 | 22ISO 4014: 21 | 24.49ISO 4014: 23.36 | 150 | |
| M14 | 220 | 53 | 2 | 22ISO 4014: 21 | 24.49ISO 4014: 23.36 | 141 | |
| M16 | 110 | 38 | 2 | 24 | 26.75 | 200 | |
| M16 | 120 | 38 | 2 | 24 | 26.75 | 180 | |
| M16 | 130 | 44 | 2 | 24 | 26.75 | 160 |
DIN 931 | M12 x 150
dM12
L150
b36
P1.75
s19ISO 4014: 18
e21.1ISO 4014: 20.03
MOQ260
DIN 931 | M12 x 160
dM12
L160
b36
P1.75
s19ISO 4014: 18
e21.1ISO 4014: 20.03
MOQ240
DIN 931 | M12 x 190
dM12
L190
b36
P1.75
s19ISO 4014: 18
e21.1ISO 4014: 20.03
MOQ240
DIN 931 | M12 x 200
dM12
L200
b36
P1.75
s19ISO 4014: 18
e21.1ISO 4014: 20.03
MOQ200
DIN 931 | M12 x 240
dM12
L240
b49
P1.75
s19ISO 4014: 18
e21.1ISO 4014: 20.03
MOQ160
DIN 931 | M12 x 300
dM12
L300
b49
P1.75
s19ISO 4014: 18
e21.1ISO 4014: 20.03
MOQ140
DIN 931 | M14 x 120
dM14
L120
b34
P2
s22ISO 4014: 21
e24.49ISO 4014: 23.36
MOQ220
DIN 931 | M14 x 130
dM14
L130
b40
P2
s22ISO 4014: 21
e24.49ISO 4014: 23.36
MOQ220
DIN 931 | M14 x 140
dM14
L140
b40
P2
s22ISO 4014: 21
e24.49ISO 4014: 23.36
MOQ200
DIN 931 | M14 x 150
dM14
L150
b40
P2
s22ISO 4014: 21
e24.49ISO 4014: 23.36
MOQ200
DIN 931 | M14 x 200
dM14
L200
b40
P2
s22ISO 4014: 21
e24.49ISO 4014: 23.36
MOQ150
DIN 931 | M14 x 220
dM14
L220
b53
P2
s22ISO 4014: 21
e24.49ISO 4014: 23.36
MOQ141
DIN 931 | M16 x 110
dM16
L110
b38
P2
s24
e26.75
MOQ200
DIN 931 | M16 x 120
dM16
L120
b38
P2
s24
e26.75
MOQ180
DIN 931 | M16 x 130
dM16
L130
b44
P2
s24
e26.75
MOQ160
Product description
Part Thread Hex Bolt is a hexagon head bolt with partial threading, manufactured to DIN 931. It is supplied in carbon steel, available in property classes 8.8 and 4.8, with finishes including blackened, zinc plated, and Dacromet. Standard diameters range from M8 to M12, with lengths from 110 mm to 200 mm. For quotation, specify diameter, length, grade, finish, and required quantity. Minimum order quantities vary by size.
Key features
- Hexagon head per DIN 931
- Partial thread configuration
- Available in grades 8.8 and 4.8
- Finishes: blackened, zinc plated, Dacromet
Applications
- General machinery assembly
- Equipment fastening
- Structural steel assemblies
Standard and order documents
The selected execution standard is the product basis. Published or order-specific documents are shown only when they have been confirmed for this product.
Frequently Asked Questions
Which order and delivery details are already confirmed for Partially Threaded Hexagon Head Bolt DIN 931?
MOQ: 12–600 pcs. Lead time: 10-15days.
What information should be included in a quotation request for Partially Threaded Hexagon Head Bolt DIN 931?
Provide the required standard, diameter or size, length, material, property class or grade, finish, quantity.
Related Products
Request this product by exact specification.
Add the required size, quantity, material, finish and documents where known.
