Certificate of conformity
Can be issued against the confirmed order requirements.
1/4Available with the order
Order assurance
The supplier has confirmed that the options below can be agreed for this product. The exact scope is fixed in the quotation or order.EN 10204 3.1 material certificate
Can be included when agreed in the order.
Dimensional inspection report
Can be provided for the agreed inspection scope.
Bulk carton packing
Available subject to confirmed piece weight and shipping requirements.
Palletized shipment
Available when pallet size and handling requirements are confirmed.
Small boxes with outer cartons
Available when the box quantity and labels are agreed.
Buyer branding and labels
Available after artwork, label content, placement and the applicable minimum batch are agreed.
Available options
Material
Grade
Finish
36 sizes

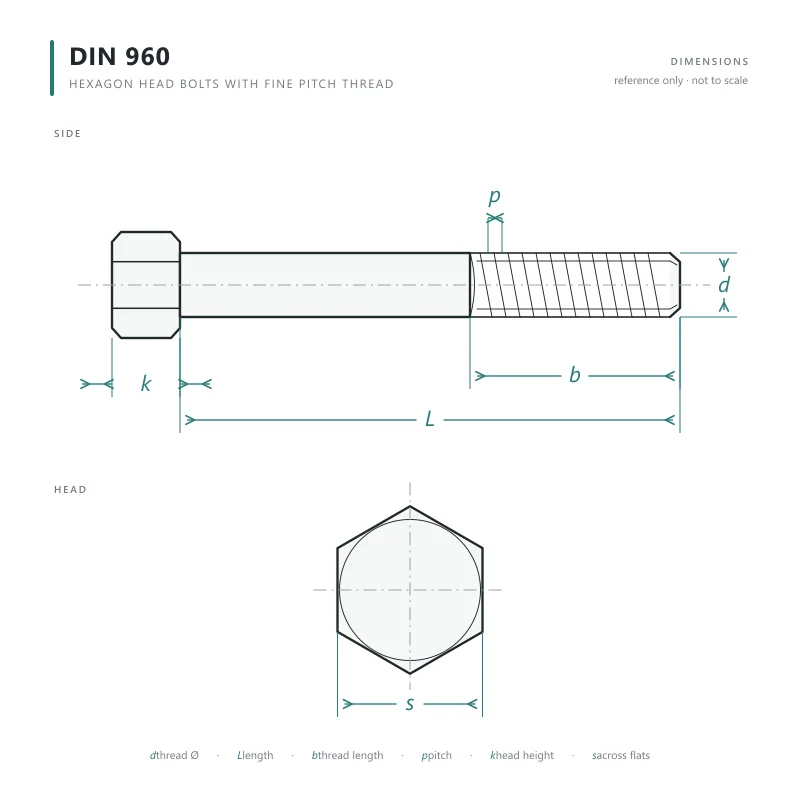

| d | L | b | P | s | e | MOQ | Quantity and inquiry |
|---|---|---|---|---|---|---|---|
| M10 | 40 | 26 | 1.25 | 17 | 18.9 | 5000 | |
| M10 | 45 | 26 | 1.25 | 17 | 18.9 | 2000–5000 pcs | |
| M10 | 50 | 26 | 1.25 | 17 | 18.9 | 5000 | |
| M10 | 55 | 26 | 1.25 | 17 | 18.9 | 2000–5000 pcs | |
| M10 | 60 | 26 | 1.25 | 17 | 18.9 | 5000 | |
| M10 | 65 | 26 | 1.25 | 17 | 18.9 | 2000–5000 pcs | |
| M10 | 70 | 26 | 1.25 | 17 | 18.9 | 5000 | |
| M10 | 80 | 26 | 1.25 | 17 | 18.9 | 5000 | |
| M10 | 90 | 26 | 1.25 | 17 | 18.9 | 5000 | |
| M10 | 100 | 26 | 1.25 | 17 | 18.9 | 2000–5000 pcs | |
| M10 | 110 | 26 | 1.25 | 17 | 18.9 | 2000–5000 pcs | |
| M10 | 120 | 26 | 1.25 | 17 | 18.9 | 2000–5000 pcs | |
| M10 | 130 | 32 | 1.25 | 17 | 18.9 | 2000–5000 pcs | |
| M10 | 40 | 26 | 1 | 17 | 18.9 | 3000 | |
| M10 | 45 | 26 | 1 | 17 | 18.9 | 3000 | |
| M10 | 50 | 26 | 1 | 17 | 18.9 | 3000 |
DIN 960 | M10 x 1.25 x 40
dM10
L40
b26
P1.25
s17
e18.9
MOQ5000
DIN 960 | M10 x 1.25 x 45
dM10
L45
b26
P1.25
s17
e18.9
MOQ2000–5000 pcs
DIN 960 | M10 x 1.25 x 50
dM10
L50
b26
P1.25
s17
e18.9
MOQ5000
DIN 960 | M10 x 1.25 x 55
dM10
L55
b26
P1.25
s17
e18.9
MOQ2000–5000 pcs
DIN 960 | M10 x 1.25 x 60
dM10
L60
b26
P1.25
s17
e18.9
MOQ5000
DIN 960 | M10 x 1.25 x 65
dM10
L65
b26
P1.25
s17
e18.9
MOQ2000–5000 pcs
DIN 960 | M10 x 1.25 x 70
dM10
L70
b26
P1.25
s17
e18.9
MOQ5000
DIN 960 | M10 x 1.25 x 80
dM10
L80
b26
P1.25
s17
e18.9
MOQ5000
DIN 960 | M10 x 1.25 x 90
dM10
L90
b26
P1.25
s17
e18.9
MOQ5000
DIN 960 | M10 x 1.25 x 100
dM10
L100
b26
P1.25
s17
e18.9
MOQ2000–5000 pcs
DIN 960 | M10 x 1.25 x 110
dM10
L110
b26
P1.25
s17
e18.9
MOQ2000–5000 pcs
DIN 960 | M10 x 1.25 x 120
dM10
L120
b26
P1.25
s17
e18.9
MOQ2000–5000 pcs
DIN 960 | M10 x 1.25 x 130
dM10
L130
b32
P1.25
s17
e18.9
MOQ2000–5000 pcs
DIN 960 | M10 x 1 x 40
dM10
L40
b26
P1
s17
e18.9
MOQ3000
DIN 960 | M10 x 1 x 45
dM10
L45
b26
P1
s17
e18.9
MOQ3000
DIN 960 | M10 x 1 x 50
dM10
L50
b26
P1
s17
e18.9
MOQ3000
Product description

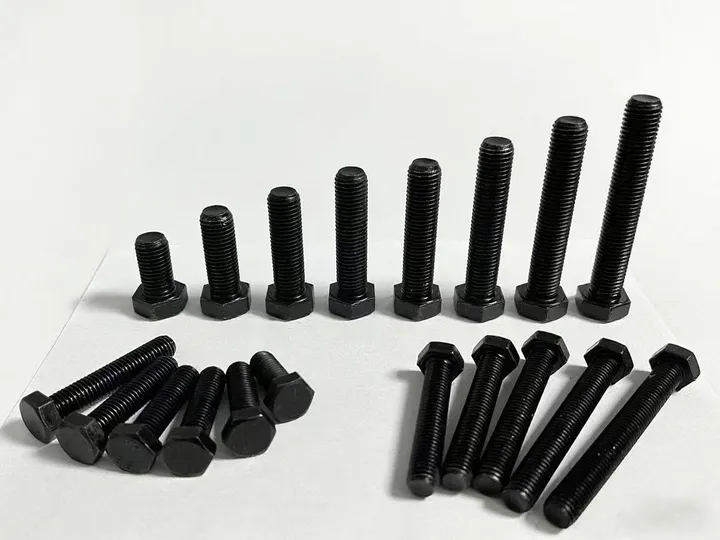

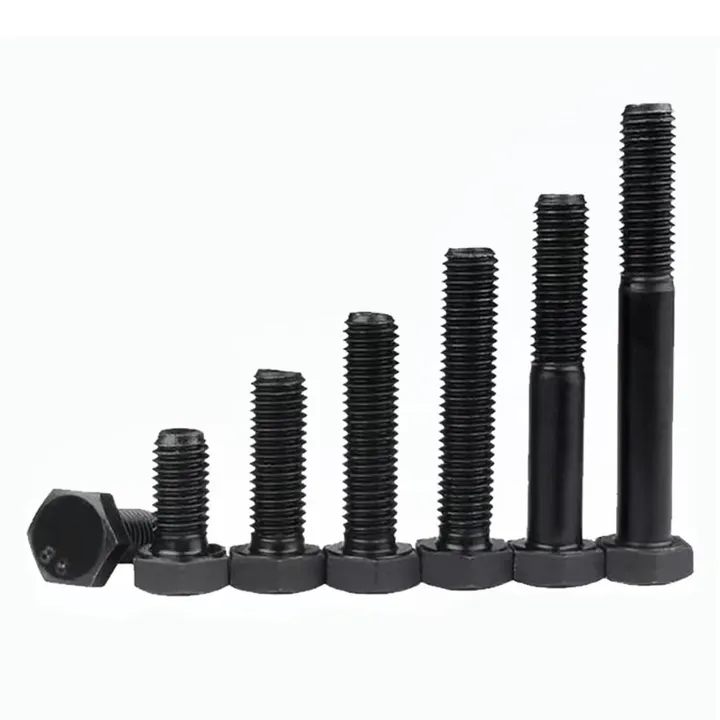

Hexagon Head Bolt DIN 960 is a part-threaded fastener with a fine pitch thread, manufactured from carbon steel to property class 8.8. The bolt features a hexagon head and is available in blackened or zinc plated finishes. Standard sizes include M10 and M12 diameters with lengths from 40 mm to 130 mm. Buyers should specify diameter, length, pitch, finish, and required quantity for quotation. Minimum order quantities may apply for certain configurations.
Key features
- Fine pitch thread per DIN 960
- Part-threaded shank
- Property class 8.8 carbon steel
- Available in blackened or zinc plated finishes
Standard and order documents
The selected execution standard is the product basis. Published or order-specific documents are shown only when they have been confirmed for this product.
Frequently Asked Questions
What documented quality support is available for Hexagon Head Bolt DIN 960?
Documents: Certificate of conformity, EN 10204 3.1 material certificate, Dimensional inspection report. Confirm the required scope and acceptance criteria in the quotation.
Which order and delivery details are already confirmed for Hexagon Head Bolt DIN 960?
MOQ: 2000–5000 pcs. Lead time: 15 Days. Confirmed packing options include Bulk carton packing, Palletized shipment, Small boxes with outer cartons, Buyer branding and labels.
What information should be included in a quotation request for Hexagon Head Bolt DIN 960?
Provide the required standard, diameter or size, length, material, property class or grade, finish, quantity.
